Friday, April 24, 2009

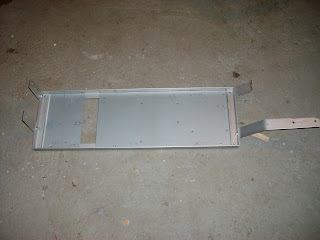

Control Tray Frame

I have completed the hardware part of the control tray and setup the electronics on it.

From right to left, I have the 12 Volt Thomas Vacuum Pump, Electronic Control Box, Curtis SW200 Contactor and Curtis 1400E 96 Volt DC-DC converter. I need to pick up some more bolts for mounting the components and I haven't wired up anything yet. I am redoing ALL the wiring to neaten it up and reconfigure a few components I now have like the DC/DC.

I am hoping to finish up the electrical parts of the tray this weekend and test it out. Now I don't have my motor yet, but I don't need it to test the low voltage systems. I am estimating an hour or two for the wiring so I am almost there. This weekend is going to have excellent weather so testing it out should be easy.

Friday, April 17, 2009

Some Motivation

Well this weather has giving me some more motivation to work on the EV! It was about 70F today and I got a lot done on the control tray.

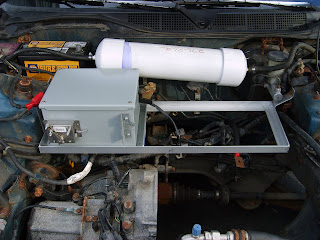

I have one more mount to make for it, then I get down to installing the components. I also am going to to cut out some sheet metal to make a base for the components and for splash protection. This tray isn't complete yet, and it already looks really good. This engine compartment is going to be stuff, but hopefully it will look professional.

It looks like this weekend I will be finishing up this control tray. I will also be redoing the entire electrical setup. I have a new contactor that I want to use to replace the two parallel smaller ones I have. There are a few things in the engine compartment that can be removed and cleaned up a bit, like excess wiring brackets that aren't in use anymore.

Right now my wiring setup is rather difficult to follow and messy. Now that I have a DC/DC things will be changed around a bit.

My motor is still at the shop and will probably be there until mid May. When I do get it back it should be a matter of a day of installing it and making the motor mount.

Sunday, April 12, 2009

April Update

It's been about a month since I last posted, and that's because I have been busy slacking. I haven't gotten a whole lot done, and I am still waiting for the new motor adapter plates. I talked to the machine shop last week, and they haven't started it yet, so it's still a ways off.

I did finally remove the Cruise Control Unit from the engine compartment and readjusted the PakTrakr wiring. I did receive the 96 volt Curtis DC/DC that I traded for and it looks really nice:Between weather, school work and holidays, I really haven't done anything with the EV. I have all the control systems on the work bench, but I haven't purchased the material to building the new control tray system yet. I was going to wait until the motor was in, but at this point I have just going to work on the tray when I get the time just to get something done.
