Thursday, May 21, 2009

Test Fit

Now that I am completely done with classes, it's EV time!

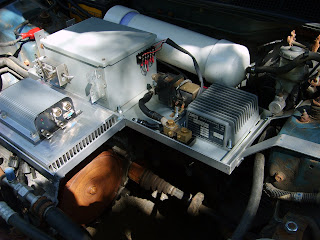

I did a test fit of the control tray in the EV today, and I have to say I do quite like it. I need another trip to ACE to get some 1/4-20 bolts to mount the controller/heatsink to the mini tray, and I need a longer hose for the vacuum switch. Then I will lock down the vacuum tank and finish up some wiring and test the tray.

I also fiddled with the BC-20 charger today. My batteries needed a freshen up charge, but the charger wouldn't work. I found out that my setting resistor needed to be readjusted to deal with the heat. After 45 minutes of fiddling, I started a top off charge.

Monday, May 18, 2009

Finally, Some Real Progress

It has been about a month since I have done one tiny thing on the EV. Actually, I haven't really worked on it since winter break. A little bit here, or there, but this past semester has been loaded and most of the things I wanted to do did not happen.

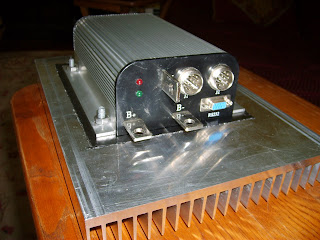

Well, I finally have day to work on the EV. I received my new heatsink and mounted the controller to it.

I have also finished wiring the entire control tray. The only two things left for the tray is to mount the heatsink controller to it's small tray and to add lock washers to the nuts. Then it gets installed and tested. I am also going to make up a clear wiring diagram eventually.

Tuesday, May 5, 2009

May Update

I am in my final weeks of the semester so I really haven't been able to do to much on the EV. I am almost done with the new wiring for the control system but it has taken much longer than I hoped because I had to get new relays.

If I play my cards right, I should be able to finish the rest of my semester's work this week and take Friday afternoon off to work on the EV before seeing the new Star Trek movie.

I also have ordered up a proper heatsink for my Kelly KDH09401. I have a 8.5"x12" finned aluminum heatsink coming in soon that will not only look better than the plate I have not, but should also provide even better cooling.
